Windproof Side-Rail Blinds
Features and Structure Behind Wind Grade 8 and 10
A zip-track roller blind resists wind by locking its fabric edges inside aluminium side tracks with welded zipper teeth. Both edges stay captured in the side channels along the full drop, so the fabric remains tensioned and flat across its width instead of flapping or billowing. The manufacturer states wind resistance of grade 10 for the manual models and grade 8 for the motorized models; those are factory ratings rather than project-specific certified wind-pressure test reports.
Wind Resistance Test
Wind Resistance Test on the Side-Rail Blind
The video shows the blind under wind load, with the fabric edge held inside the side rails. The manufacturer states a windproof grade of 8 for this system.

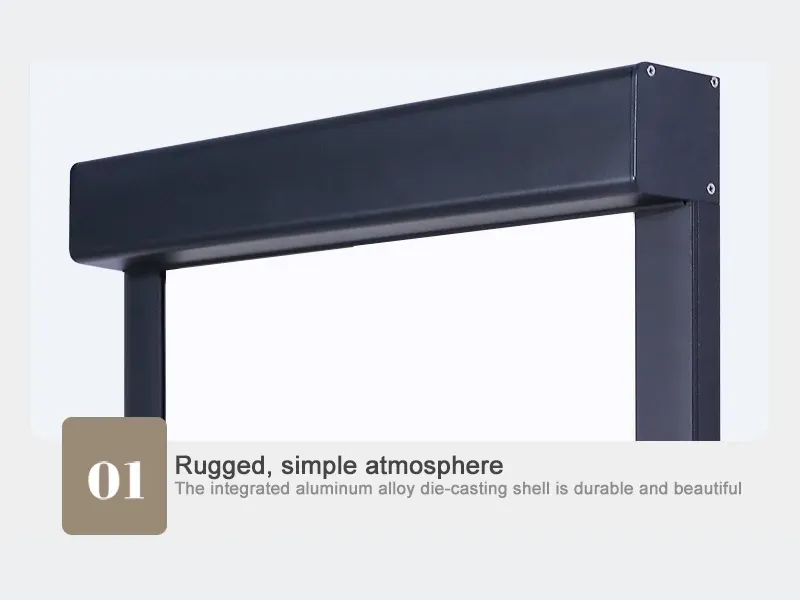

01 / Casing
Rugged, clean die-cast casing
The cassette houses the rolled fabric at the top of the opening. The cassette and the side tracks are aluminium alloy, so the fabric is held along its full drop and cannot pull out of its side channel. An aluminium alloy bottom rail keeps the lower edge stable across the span.
Durable and presentable
Die-cast aluminium alloy shell resists impact and corrosion
Integrated structure
One-piece casing with no visible seams on the face
02 / Wind
Anti-wind and anti-wrinkle side rail
The fabric edge carries a zipper running inside each aluminium side track to hold the screen flat and resist flapping. This side-retention system provides manufacturer-stated resistance of wind grade 10 for manual models and grade 8 for motorized models.
Wind grade 8 / 10
Stated rating: grade 8 for motorized models, grade 10 for manual models
Zipper guide structure
Fabric edge held inside the side rail along its full length

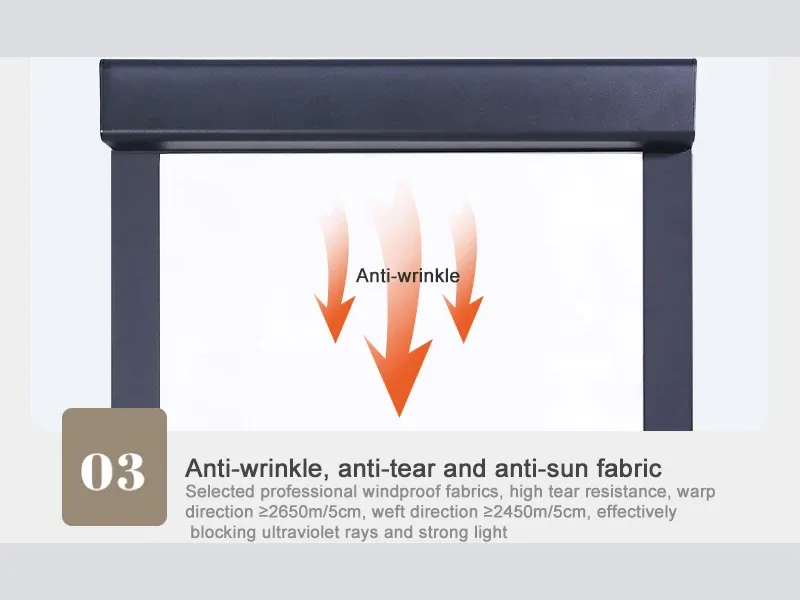

03 / Fabric
Anti-wrinkle, anti-tear and anti-sun fabric
The composite fabric combines polyester, glass fibre and PVC in a 565 g/m² weave. The manufacturer states tear strength at warp ≥2650 N/5 cm and weft ≥2450 N/5 cm, with a B1 fire-retardant classification and water-proof, oil-proof and wear-resistant properties. The dense weave also cuts solar glare.
High tear resistance
Warp ≥2650 N/5 cm / weft ≥2450 N/5 cm (stated)
Blocks UV and strong light
Keeps the shaded area protected in daily sun
Built for Wind
Engineered to Hold Through Wind and Weather
These three details show how the side-rail system, dense-weave fabric and cassette work together in wind and weather.

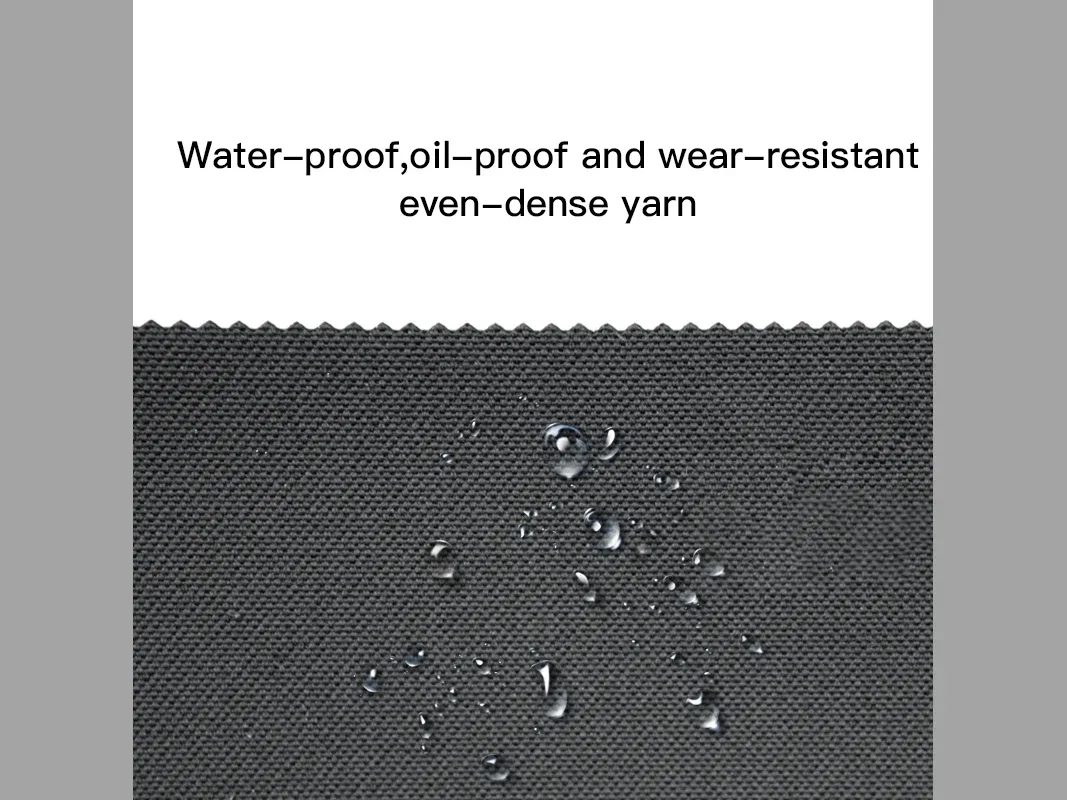

Dense-weave fabric sheds water
Water droplets bead on the grey dense-weave fabric, which is stated as water-proof, oil-proof and wear-resistant. The even-dense yarn helps the surface resist water and oil.

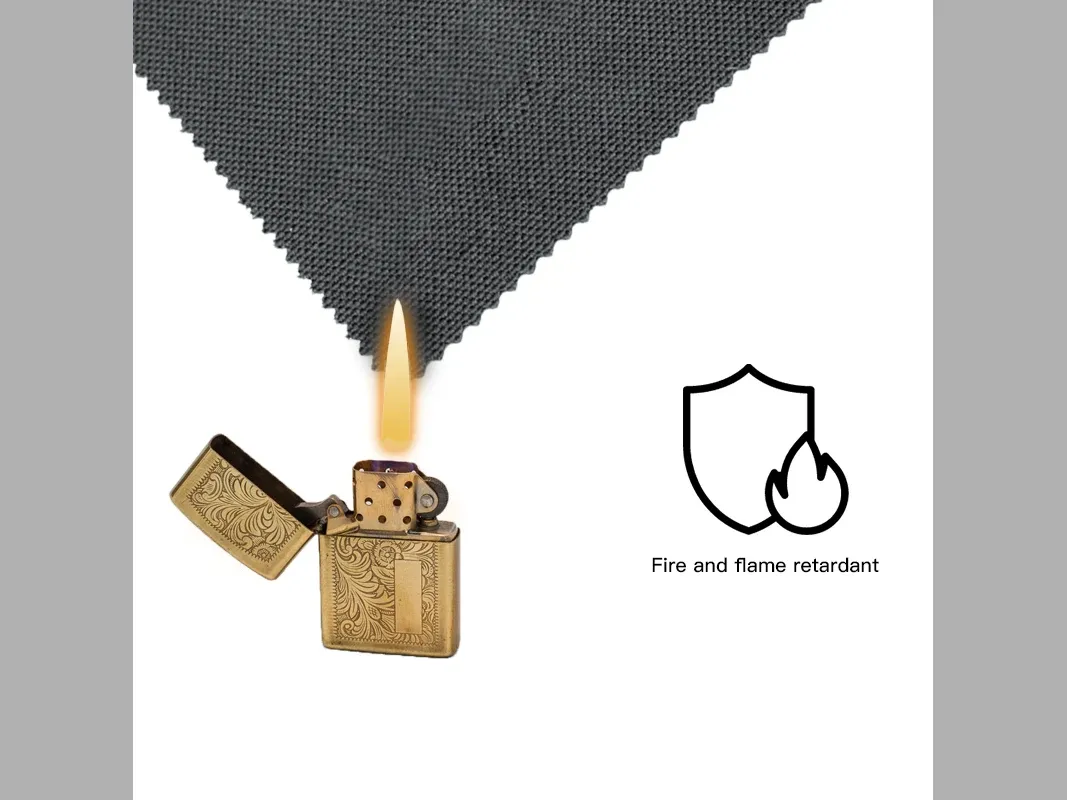

Fire-retardant fabric
The fabric is stated as fire and flame retardant. Fabric construction is polyester, glass fiber or PVC depending on the type.

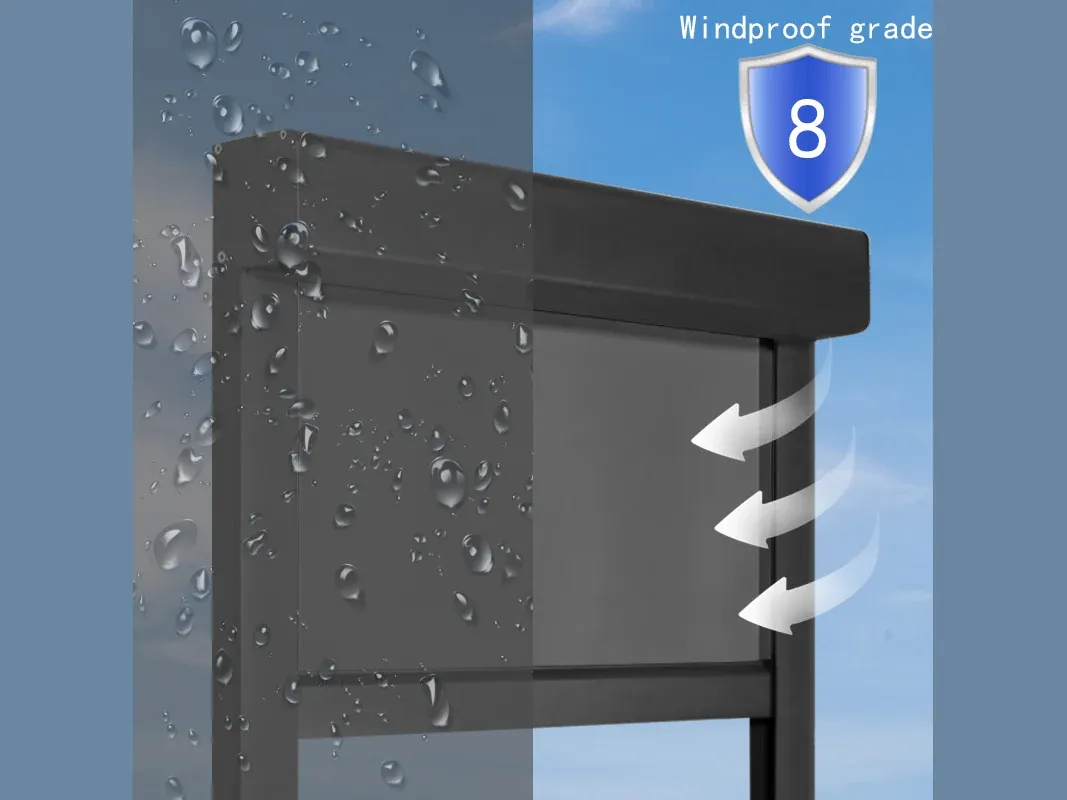

Windproof and waterproof
The cassette and aluminium side rails are built for wind and rain. The zipper edge runs inside a guide strip in each side rail, so the fabric stays held.
Features and Durability
Answers on Wind, Fabric and Weather
Straight answers on wind rating, the zipper rail system and what the fabric is stated to resist.
Model and site questions: ask raymond@eziptrack.com.
